BLine-Lib is the Java library that powers path following on your FRC robot. It loads paths (from JSON or code), handles alliance flipping, and provides the path-following algorithm for holonomic drivetrains.

Key Features

  • Simple API: Minimal boilerplate to get paths running
  • Flexible path definition: JSON files, code, or both
  • Customizable constraints: Global defaults with per-path and per-segment overrides
  • Rate-limited motion: Smooth velocity and acceleration control

Architecture

BLine-Lib follows a simple flow: Builder → Path → FollowPath

  1. Builder — Configure PID controllers, pose suppliers, and drive callbacks once
  2. Path — Define waypoints, translation targets, and rotation targets (from JSON or code)
  3. FollowPath — Execute path following as a WPILib Command with rate-limited motion

Tracking Algorithm

The path tracking algorithm works by:

  1. Calculating command robot speed via a PID controller minimizing total path distance remaining
  2. Determining velocity direction by pointing toward the current translation target
  3. Advancing to the next target when within the handoff radius of the current one
  4. Applying cross-track correction to stay on the line between waypoints
  5. Interpolating rotation based on progress between rotation targets
  6. Applying rate limiting via ChassisRateLimiter to respect constraints

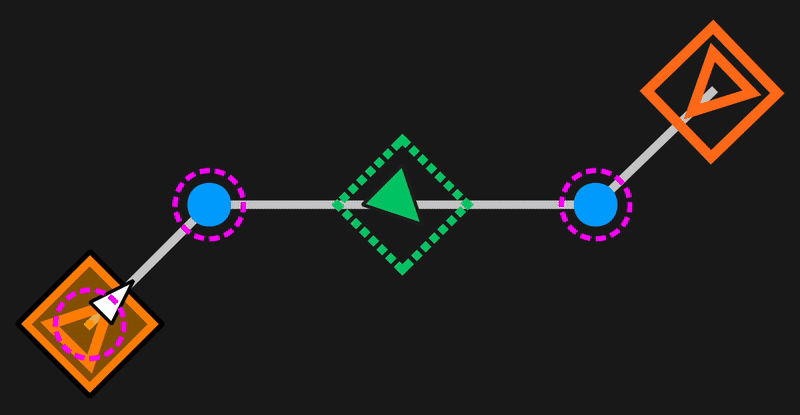

Algorithm Demo

Algorithm Robustness

The BLine path tracking algorithm is robust in its response to sharp changes in positional data:

  • Speed magnitude computation depends on distance to the path's end
  • Velocity direction depends on the next available waypoint
  • All values are acceleration-limited in 2D for smooth robot motion
  • Chassis output remains stable even during erroneous odometry jitter

Non-time-parameterized advantage: Unlike PathPlanner, BLine is not time-parameterized. The control cycle acts in a greedy fashion, making the response uniform regardless of path completion or "lag" behind an idealized path. There's no penalty for falling behind schedule—the robot simply continues toward its target.

Installation

See the Installation Guide for setup instructions.

Quick Example

import frc.robot.lib.BLine.*;
import edu.wpi.first.math.controller.PIDController;

// 1. Set global constraints (once, at robot init)
Path.setDefaultGlobalConstraints(new Path.DefaultGlobalConstraints(
    4.5, 12.0, 540, 860, 0.03, 2.0, 0.2
));

// 2. Create a FollowPath builder
FollowPath.Builder pathBuilder = new FollowPath.Builder(
    driveSubsystem,
    driveSubsystem::getPose,
    driveSubsystem::getChassisSpeeds,
    driveSubsystem::drive,
    new PIDController(5.0, 0.0, 0.0),
    new PIDController(3.0, 0.0, 0.0),
    new PIDController(2.0, 0.0, 0.0)
).withDefaultShouldFlip()
 .withPoseReset(driveSubsystem::resetPose);

// 3. Load and follow a path
Path myPath = new Path("myPathFile");
Command followCommand = pathBuilder.build(myPath);
