GUI Overview

BLine-GUI is a visual path planning interface for designing and editing autonomous paths. It provides real-time simulation preview and exports paths as JSON files that BLine-Lib can load.

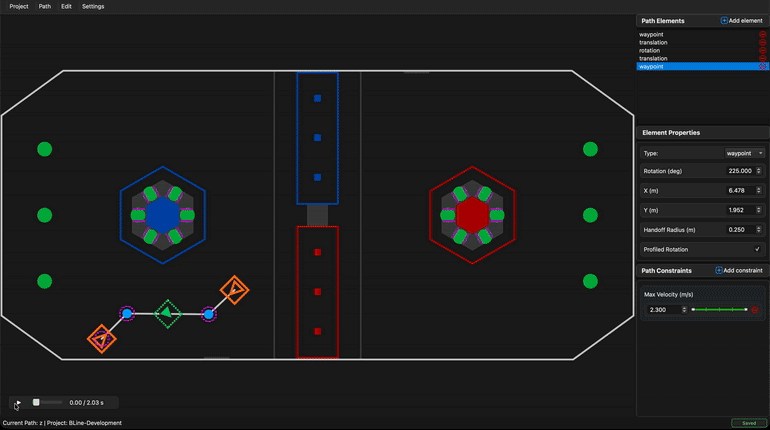

BLine GUI Demo

Getting Started

Binary installation: Launch BLine from your Start Menu (Windows), Applications folder, or run the executable directly.

Python package installation: Run bline from any terminal. To create a desktop shortcut with the BLine icon, run bline --create-shortcut.

Interface Layout

The BLine GUI consists of three main areas:

Area Purpose
Menu Bar Project management, path operations, editing tools, and settings
Canvas Visual field display with interactive path editing
Sidebar Element list, properties panel, and constraint editor
Transport Controls Simulation playback controls

Key Features

Visual Path Editing

  • Drag elements to reposition on the field
  • Rotate rotations with visual handles
  • Add, remove, and reorder elements
  • Real-time path visualization

Constraint Management

  • Set global constraints in Robot Config
  • Add ranged constraints with visual feedback
  • See constraint coverage on the path

Simulation Preview

  • Play/pause path simulation
  • Scrub through timeline
  • View robot trajectory
  • Estimate path duration

Element Colors

On the canvas, elements are color-coded:

Color Element Type
🟠 Orange Waypoint (position + rotation)
🔵 Blue TranslationTarget (position only)
🟢 Green dashed RotationTarget (rotation only)
🟣 Magenta dashed circle Handoff radius

Workflow

A typical path creation workflow:

  1. Create a new project or open an existing one
  2. Configure Robot Settings (Settings → Robot Config)
  3. Add path elements by clicking on the canvas or using the sidebar
  4. Position elements by dragging them on the field
  5. Set rotations using the rotation handles
  6. Add constraints for velocity limits on specific segments
  7. Preview using the simulation controls
  8. Save the path (automatically exports JSON)

Project Structure

BLine organizes projects in a deploy/autos/ directory:

autos/
├── config.json          # Global constraints and robot config
└── paths/
    ├── score_first.json
    ├── intake.json
    └── ...

The paths/ folder corresponds to deploy/autos/paths/ in your robot code.

Keyboard Shortcuts

  • Space - Play/pause simulation (when canvas is focused)
  • Delete / Backspace - Remove selected elements
  • Ctrl+Z - Undo
  • Ctrl+Y - Redo

Learn More

  • Menu Bar — Project management, path operations, and settings
  • Canvas — Detailed canvas interactions and controls
  • Sidebar — Element editing and constraint management
  • Simulation — Using the simulation preview
