Key Parameters

Understanding these key parameters is essential for tuning BLine paths for optimal performance.

Handoff Radius

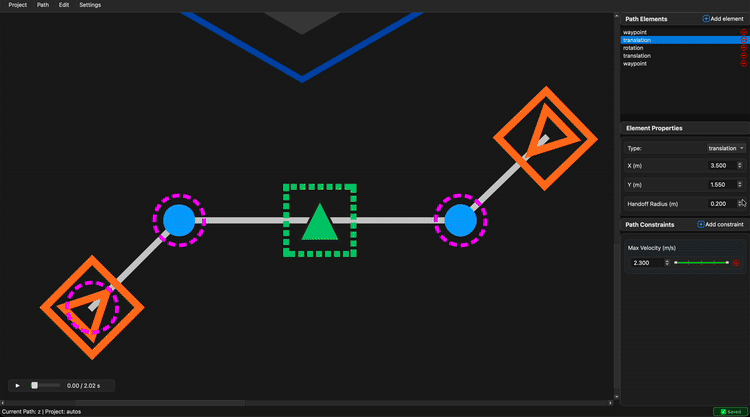

The intermediate handoff radius determines how close the robot must get to a translation target before advancing to the next one. On the canvas, this is visualized as a magenta dashed circle around translation elements.

How It Works

When the robot enters the handoff radius of the current target, the path follower advances to the next element, creating smooth transitions between segments.

Tuning Guidelines

Radius Size	Behavior	Use Case
Smaller	Robot waits longer before switching targets	Better precision at waypoints, but can cause hesitation
Larger	Robot switches sooner	Smoother transitions at speed, but may cut corners

Critical Warning

If the radius is too small, the robot may overshoot and miss the handoff zone entirely at high velocities—this causes erratic path behavior and is the worst-case scenario. Conversely, if the handoff radius is too large, the robot will switch targets too early, causing path instability.

Smooth Turns: Add More Elements

For smoother, more accurate navigation through turns, try adding a few extra TranslationTargets or Waypoints along the curve.
This approach lets the robot follow the desired path more naturally—without needing aggressive velocity constraints or oversize handoff radii.
More elements create a gentler, better-controlled trajectory through each bend. Just be sure not to oversaturate your paths and keep them as sparse as possible.

Setting Handoff Radius

Per-element in the GUI sidebar, or via the intermediate_handoff_radius_meters field in JSON.

Project-wide default in Settings → Robot Config (GUI) or via config.json:

{
    "default_intermediate_handoff_radius_meters": 0.2
}

t_ratio (Rotation Targets)

The t_ratio parameter defines where along the path segment (0.0 to 1.0) a rotation should be achieved. This only applies to RotationTarget elements.

Values

t_ratio	Position Along Segment
0.0	Rotation at the start of the segment
0.5	Rotation at the midpoint
1.0	Rotation at the end of the segment

How It's Used

The path follower calculates the robot's progress along the current segment as a ratio (0.0 to 1.0). Rotation targets are processed when the robot's progress exceeds the target's t_ratio.

For profiled rotation, the rotation setpoint interpolates smoothly based on progress. For non-profiled rotation, the robot immediately adopts the target rotation upon reaching the t_ratio threshold.

GUI Interaction

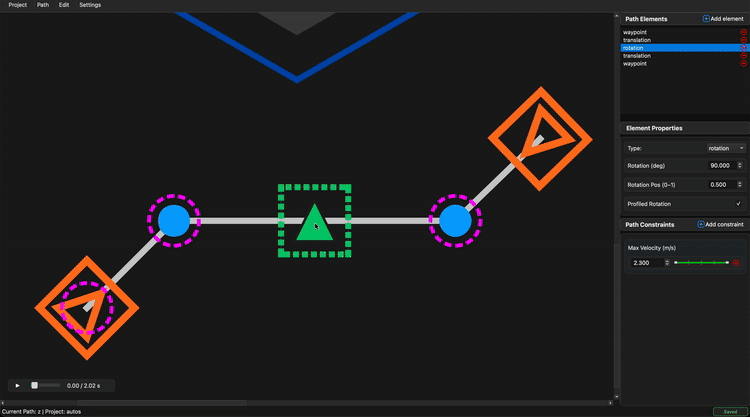

In the GUI, simply drag the RotationTarget along its connecting line to adjust the t_ratio visually. The element snaps to positions along the segment.

Profiled Rotation

The profiled rotation setting controls how the robot transitions to a target rotation.

Profiled (Default: true)

The robot smoothly interpolates its rotation based on t-ratio progression along the path:

• As the robot travels, its rotation setpoint gradually transitions toward the target rotation
• The transition is proportional to segment progress
• Results in smooth, predictable rotation behavior

{
    "type": "rotation",
    "rotation_radians": 1.57,
    "t_ratio": 0.5,
    "profiled_rotation": true
}

Non-Profiled (false)

The robot immediately snaps to the target rotation when it enters the segment:

• No interpolation based on position
• Useful when you want an immediate rotation change
• Can be more aggressive but less smooth

{
    "type": "rotation",
    "rotation_radians": 1.57,
    "t_ratio": 0.5,
    "profiled_rotation": false
}

When to Use Each

Mode	Best For
Profiled	Most situations; smooth autonomous routines
Non-Profiled	Quick reaction rotations; when you need immediate rotation change

Toggle this setting per-element in the sidebar under "Profiled Rotation".

End Tolerances

End tolerances determine when the path follower considers the path complete.

End Translation Tolerance

How close (in meters) the robot must be to the final position to finish the path.

• Smaller values → More precise final positioning, but may take longer or oscillate
• Larger values → Faster completion, but less precise

Typical values: 0.02 to 0.1 meters

End Rotation Tolerance

How close (in degrees) the robot must be to the final rotation to finish the path.

• Smaller values → More precise final rotation
• Larger values → Faster completion

Typical values: 1.0 to 5.0 degrees

Setting Tolerances

In code:

Path.PathConstraints constraints = new Path.PathConstraints()
    .setEndTranslationToleranceMeters(0.02)  // 2 cm
    .setEndRotationToleranceDeg(1.0);        // 1 degree

In JSON:

{
    "constraints": {
        "end_translation_tolerance_meters": 0.03,
        "end_rotation_tolerance_deg": 2.0
    }
}

Parameter Interaction

These parameters work together during path execution:

Step	Action	Key Parameter
1	Robot drives toward current translation target	Translation controller
2	Speed capped by active constraints	Max velocity
3	Target switches when robot enters handoff zone	Handoff radius
4	Heading adjusts toward next rotation target	T-ratio, profiled rotation
5	Final target checks position and heading	End tolerances
6	Path completes when both tolerances satisfied	End translation/rotation tolerance

Balancing Parameters

• Higher velocity requires larger handoff radius to prevent overshoot
• Tighter turns benefit from lower velocity constraints on those segments
• Precision maneuvers need smaller tolerances, smaller handoff radii, and lower velocities
